Reverse Engineering the Apple QuickTake 200 in 2026

The Apple QuickTake 200 was released on February 17, 1997 and discontinued the same year, when Steve Jobs returned to Apple and started cutting everything that wasn't essential. It lived for less than a year and it was one of the first consumer digital cameras ever made. It cost $749 and it shot at 640×480.

I have one and I wanted to actually use it, but that turns out to be a surprisingly deep rabbit hole.

Taken with QuickTake 200

Taken with QuickTake 200

The hardware problem

Before you can think about software, you have to solve two physical problems: the cable and the memory card.

The cable

The QuickTake 200 connects via a mini-DIN 8 connector — the same port Apple used for serial communication on Macs, labeled "modem port" or "printer port" on the back of a Power Mac. If you have a working Power Mac from that era, you're already halfway there, but if you don't (and most people don't) you need to build a chain.

The chain looks like this:

Camera (mini-DIN 8) → gender changer (female–female) → FTDI USB adapter → modern computer

The FTDI FT232RL is a USB-to-serial adapter that speaks the right voltages and you can find them on internet easily.

But the gender changer is harder, because there aren't many vendors. I found a few that work:

One warning: not all gender changers are wired 1:1. If you get no response from the camera, check your pinout against Andy Baird's cable guide, which is the best reference I found.

Pinout diagram

Pinout diagram — andybaird.com

In any case, you can go this way:

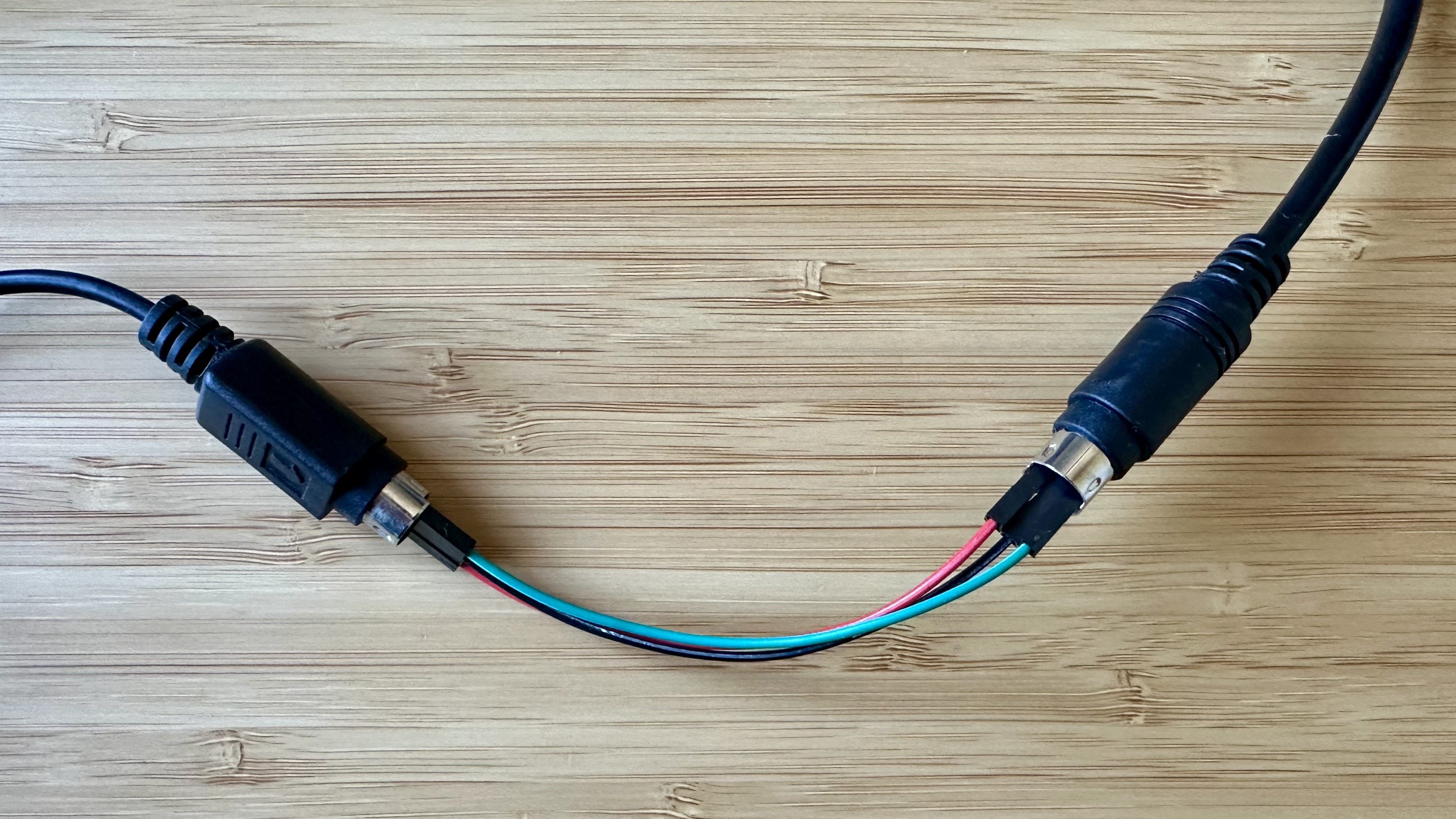

Temporary cable

The memory card

The QuickTake 200 uses a SmartMedia card. But not just any SmartMedia card.

There are two kinds: 3.3V and 5V. They look almost identical, but they're not. The difference is a 3.3V card has the upper-right corner cut off, a 5V card has the upper-left corner cut off. The QuickTake 200 needs the 3.3V version.

SmartMedia Cards

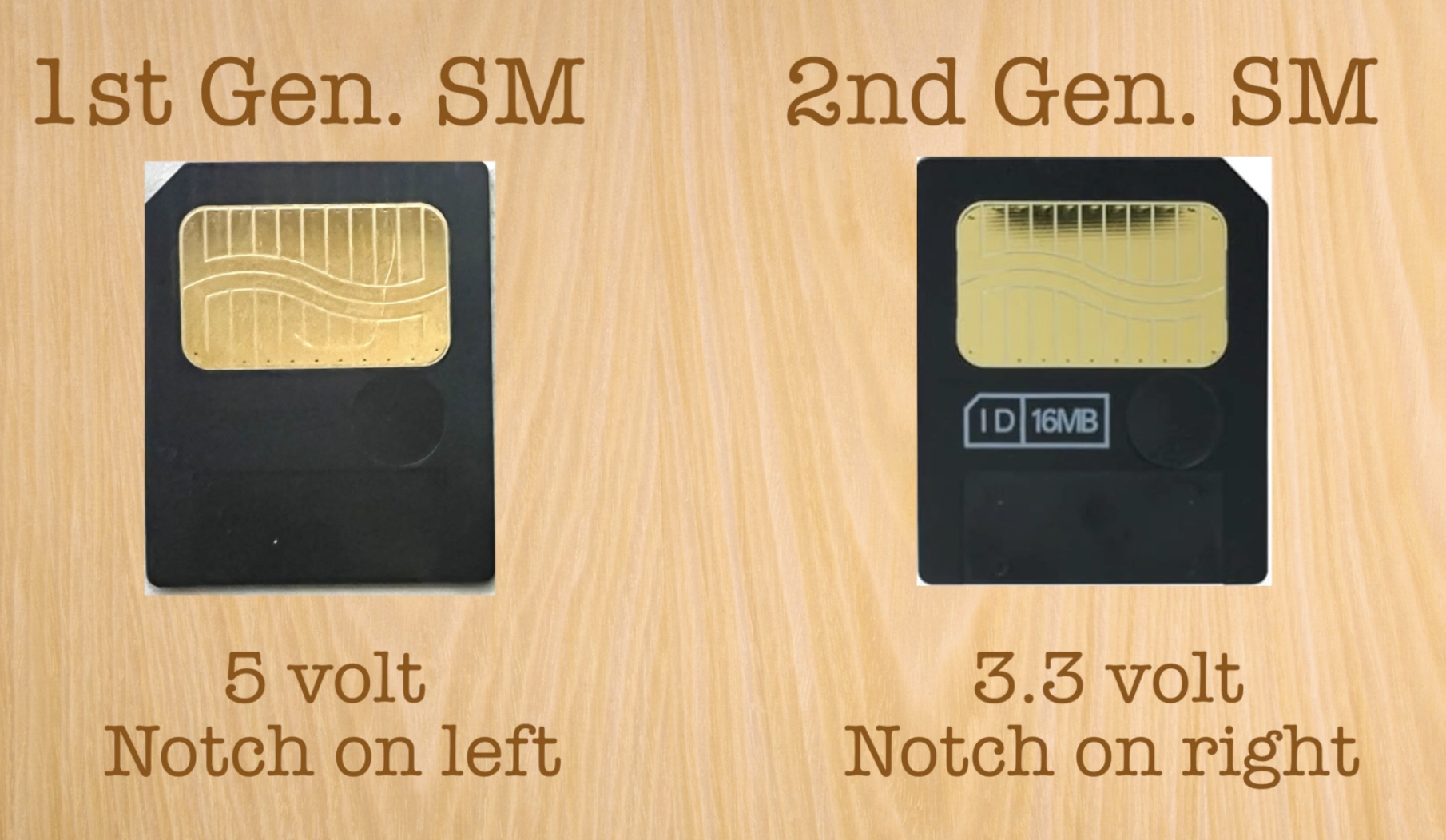

Left: 5V SmartMedia. Right: 3.3V SmartMedia — Mr. Brown’s Basement

You can still buy 3.3V SmartMedia cards. The harder part is reading them — if you want to pull photos off the card directly without going through the camera's serial connection, you need a SmartMedia card reader. These stopped being made around the same time as the cards themselves.

The options I know of:

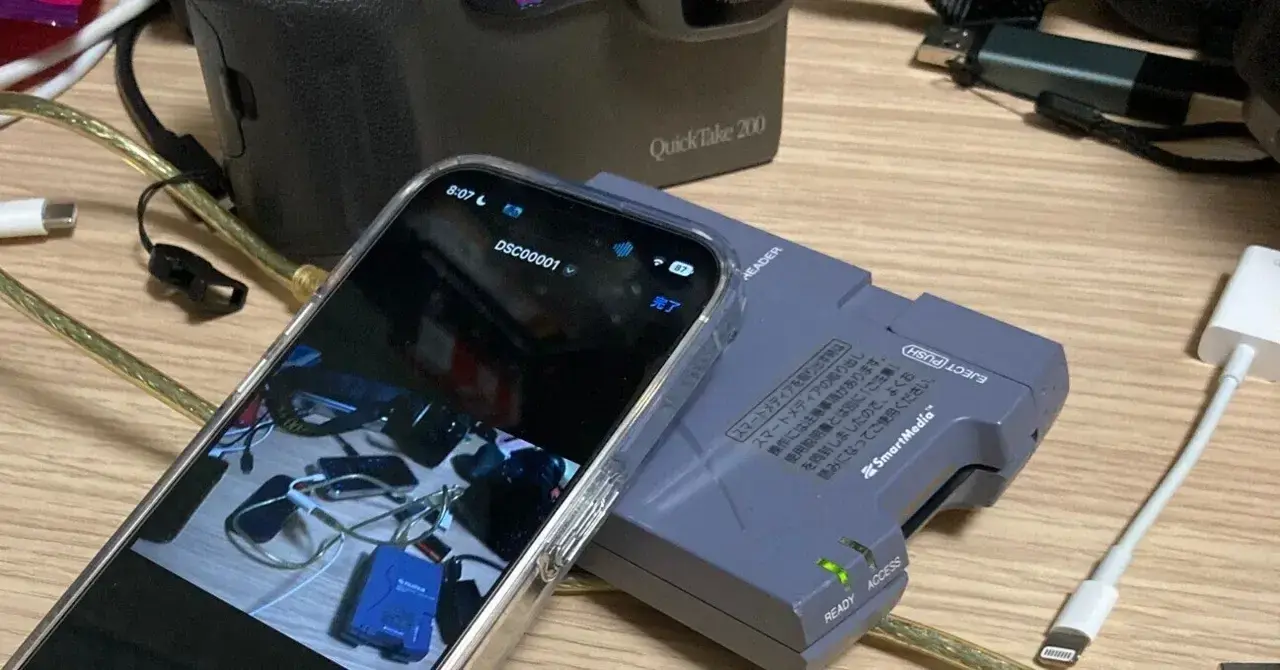

FUJIFILM SM-R1 / SM-R2

Photo by Yonehara Ryuhei

All of these are out of production and hard to find. If you have one, please keep it.

The camera itself

The QuickTake 200 is almost universally described as being based on the Fuji DS-7. But it's not — it's based on the DS-8 — a quieter sibling announced in October 1996, six months after the DS-7. The DS-8 added a high-quality fine shooting mode, improved image sharpness, and, crucially, a clip-on viewfinder, which had been the main complaint about the DS-7. The QuickTake 200 inherited all of this.

The evidence is right here.

The protocol

This is where it gets interesting.

The QuickTake 200 speaks a binary serial protocol over that mini-DIN 8 connection. The protocol is documented barely in a few archived pages from the 1990s. The best source I found is a Japanese reverse engineering writeup by Mamoru Ohno (in English) and a series of pages by Christian that document the Fuji MX protocol, which is close enough to work as a reference.

Handshake and speed negotiation

Every session starts the same way. The computer sends a single ENQ byte (0x05). The camera responds with ACK (0x06). Then the computer immediately negotiates a higher baud rate — the connection starts at 9600 baud, which is painfully slow for image data, and can be bumped all the way to 115200.

→ 0x05          (ENQ)
← 0x06          (ACK)
→ [CHANGE_SPEED command, target rate]
← [response: 0x00 = OK]

The CHANGE_SPEED command is sent as a full framed packet (described below). After the camera acknowledges the new rate, both sides switch immediately. If you miss the timing, you have to restart.

Packet framing

All communication after the handshake uses the same packet format. It's a variant of the classic BSC (Binary Synchronous Communications) framing:

DLE STX | [data with DLE stuffing] | DLE ETX/ETB | BCC

The tricky part is DLE byte stuffing: if 0x10 appears in the actual data, it gets doubled (0x10 0x10). The receiver strips one of them. This is how you distinguish "DLE as data" from "DLE as control."

The data portion of each packet has a fixed structure:

[Command: 2 bytes] [Length: 2 bytes, little-endian] [Payload: variable]

A real command packet for DOWNLOAD_IMAGE (frame 0) looks like this:

10 02          DLE STX
00 02          Command (DOWNLOAD_IMAGE)
02 00          Length (2 bytes of payload)
00 00          Payload (frame number, `uint16` LE)
10 03          DLE ETX
XX             BCC

Command reference

These are the commands I've implemented so far:

Command Bytes Description
DOWNLOAD_THUMBNAIL 00 00 Download thumbnail for frame N
DOWNLOAD_IMAGE 00 02 Download full image for frame N
GET_SOFTWARE_VERSION 00 09 Returns version string, e.g. "1.0,QuickTake 200"
GET_PICTURES_NUMBER 00 0B Returns uint16: number of photos stored
GET_PICTURE_NAME 00 0A Returns ASCII filename for frame N
GET_PICTURE_SIZE 00 17 Returns uint32: image size in bytes
CHANGE_SPEED 01 07 Negotiate new baud rate

Frame numbers are passed as little-endian uint16 in the command payload.

The image format

When you request a thumbnail, the camera doesn't send a JPEG. It sends something stranger: an EXIF envelope containing the metadata, followed by raw YCbCr pixel data.

The EXIF header gives you:

The pixel data itself is packed as 4-byte groups: [Y0, Y1, Cb, Cr]. Each group encodes two horizontally adjacent pixels sharing the same chroma values (this is standard 4:2:2 subsampling).

To get RGB:

R = Y + 1.402 × (Cr - 128)
G = Y - 0.344136 × (Cb - 128) - 0.714136 × (Cr - 128)
B = Y + 1.772 × (Cb - 128)

Conversion formula via mir.com/DMG

Full images (via DOWNLOAD_IMAGE) are standard JPEG — 640×480, sRGB, with QT-200 in the device model field. The camera sends a valid JPEG directly, so you can write the bytes to a .jpg file and open it immediately.

The client

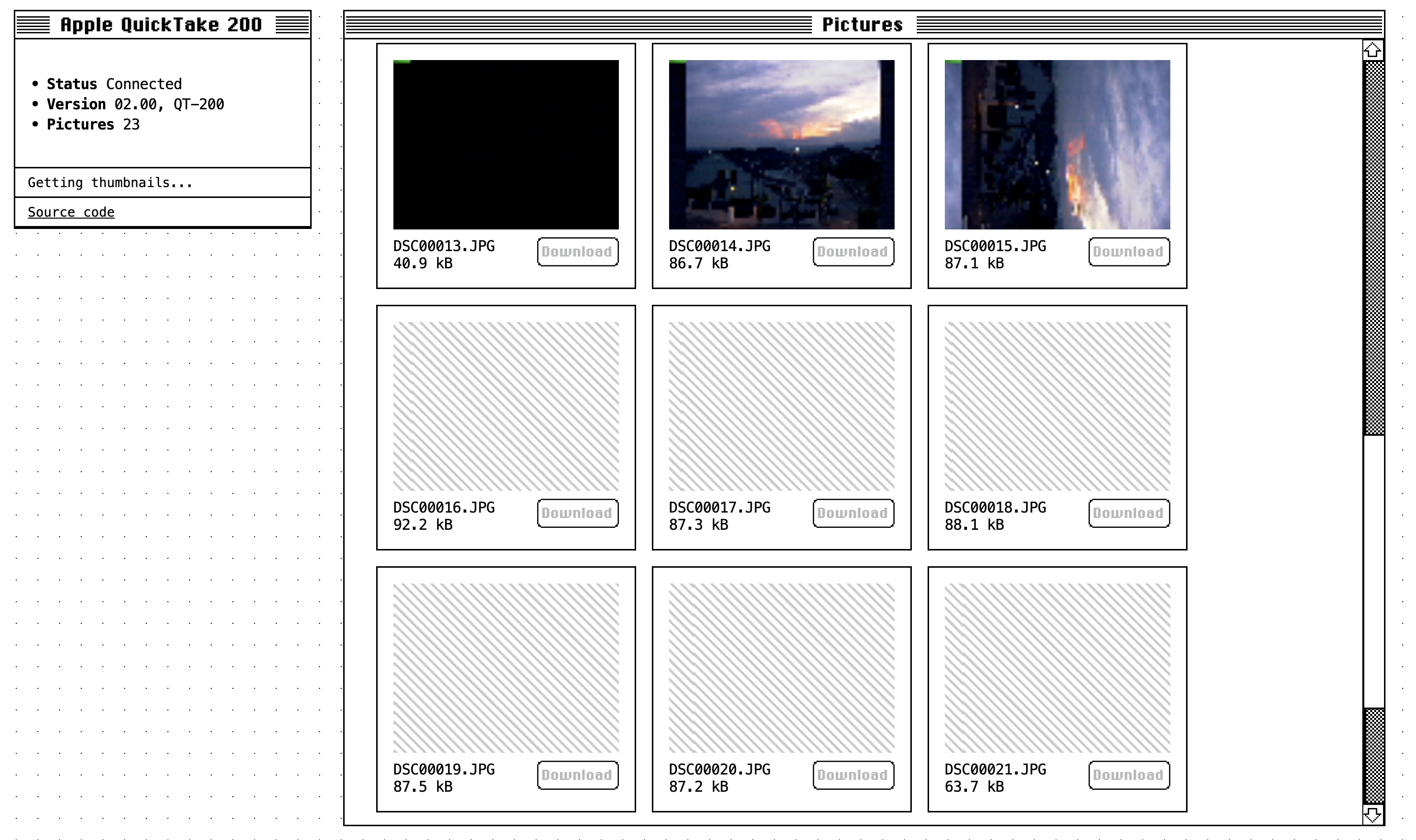

Apple QuickTake 200 Web Client

I published the code here. It's a TypeScript monorepo with three packages: client is the core library — protocol, transport, and client; app is the browser UI; cli is the script for testing without a browser.

There are two implementations: WebTransport (wraps the browser Web Serial API) and NodeTransport (wraps the serialport). The protocol and client layers don't care which one they're talking to.

The browser client requires Chrome — other browsers doesn't support Web Serial API yet. You plug in the camera, open the page, click Connect, and the browser prompts you to pick the serial port. From there, the client negotiates speed, queries the camera, and downloads thumbnails with their EXIF metadata.

Why bother

The QuickTake 200 took its last photo in 1997. The software that came with it ran on System 7. The protocol it speaks was designed for baud rates measured in the thousands.

And yet: the protocol is clean, the framing is sensible, the EXIF data is all there. Someone at Fuji thought carefully about this. The camera still talks and you just have to know how to listen.

This is what I find worth preserving about old hardware — not the nostalgia, but the craftsmanship buried inside things that were designed before planned obsolescence became the default.
